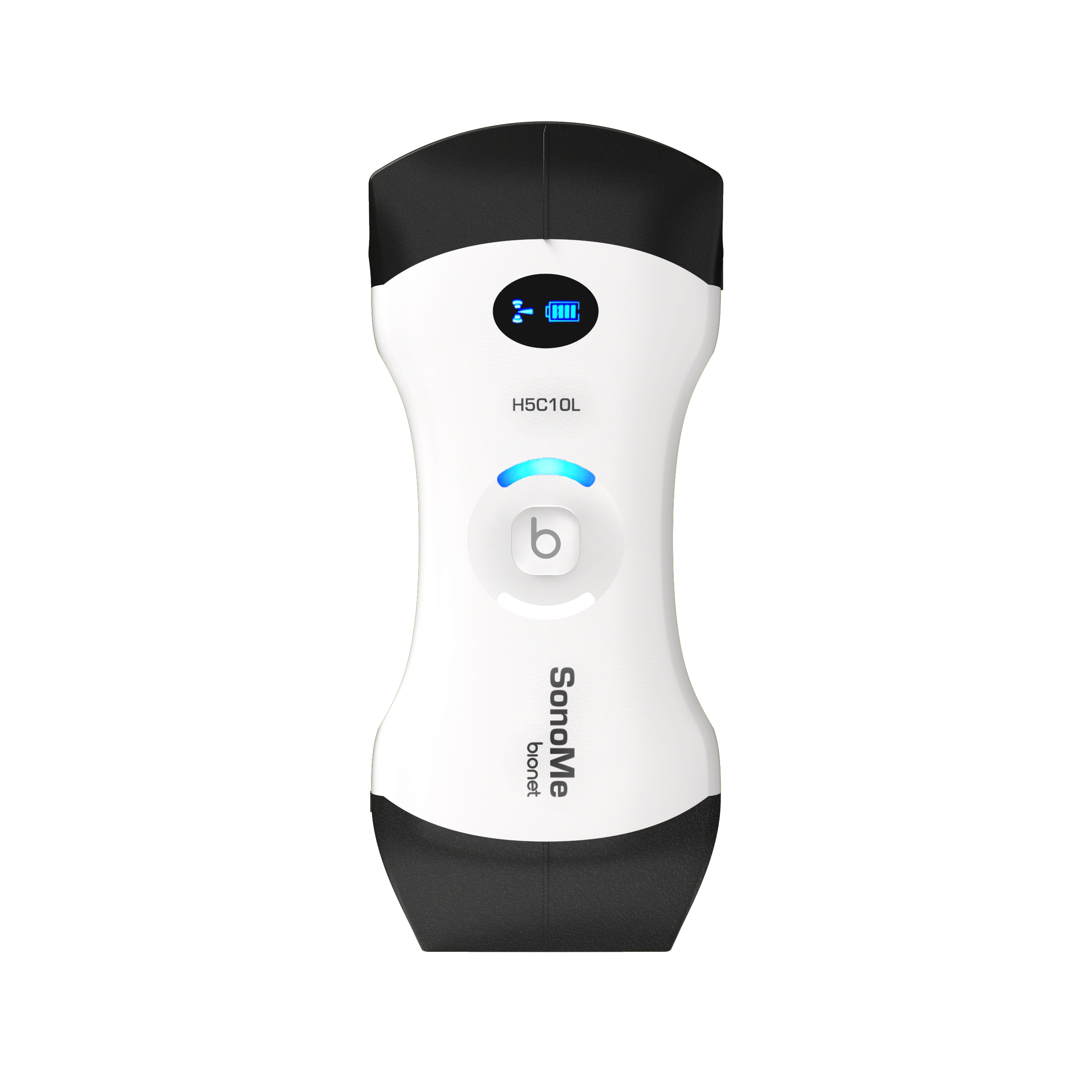

H5C10L Dual Head

Frequency: 3.2 – 5 (Convex) / 7.5 – 10 MHz (Linear)

Scanning Radius/Length: 60° (Convex) / 40mm (Linear)

Max Depth: 30.5cm (Convex) / 8cm (Linear)

Element: 192

Weight: 250g

Mode: B, B/M, Color, PDI, PW

제품사양

Overview

Element: 192

Frequency: 3.2-5 MHz (Convex), 7.5-10 MHZ (Linear)

Depth: 90mm-305mm (Convex), 20mm-80mm (Linear)

Available Modes B, B/M, Color, PDI, PW
Clinical Applications Abdomen, Gynecology, Obstetrics, Superficial vessel, Superficial organ
Measures Length, Area, Angle, Obstetrics, Blood flow velocity
Physical Characteristics

Dimensions: 159 x 69 x 29mm

Radius: 60° (Convex) Head Length 40mm (Linear)

Weight: 250g

Mobile Platforms Display: Tablet PC or Mobile Phone which supports iOS 8.0 or above, Android OS 7.0 or above.
Security and Encryption

WiFi Type: 2.4G Band

Supported Type: 802.11n(HT20)

Local Storage: Yes

DICOM: Yes

Charging and Bootup

Battery Life: 2.5 hours

Charging Mode: Wireless Charging

Operating Range

Ambient Temperature 5°C to +35°C

Relative Humidity 25% to 80%, non-condensing

Atmospheric Pressure 700hPa to 1060hPa

Max. Altitude 3000m
