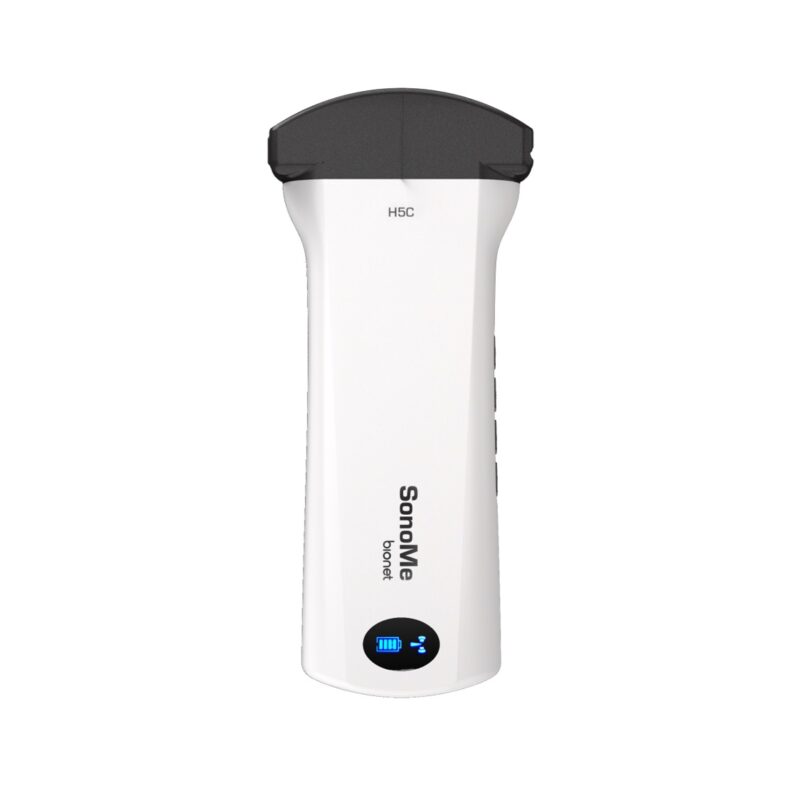

H5C Convex

Frequency: 3.2 – 5 MHz

Scanning Radius: 60°

Max Depth: 30.5cm

Element: 192

Weight: 250g

Mode: B, B/M, Color, PDI, PW

Specifications

Overview

Element: 192

Frequency: 3.2-5 MHz

Depth: 90mm-305mm

Available Modes B, B/M, Color, PDI, PW
Clinical Applications Abdomen, Gynecology, Obstetrics
Measures Length, Area, Angle, Obstetrics, Blood flow velocity
Physical Characteristics

Dimensions: 160 x 70 x 23mm

Radius: 60°

Weight: 250g

Mobile Platforms Display: Tablet PC or Mobile Phone which supports iOS 8.0 or above, Android OS 7.0 or above.
Security and Encryption

WiFi Type: 2.4G Band

Supported Type: 802.11n(HT20)

Local Storage: Yes

DICOM: Yes

Charging and Bootup

Battery Life: 5.0 hours

Charging Mode: USB Charging

Operating Range

Ambient Temperature 5°C to +35°C

Relative Humidity 25% to 80%, non-condensing

Atmospheric Pressure 700hPa to 1060hPa

Max. Altitude 3000m
